Savöx  |  Varenummer: SAV-SV0236MGPLUS Producent varenr.: SV-0236MG PLUS  |  EAN: 49117774

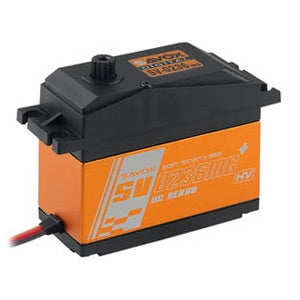

Savöx SV-0236MG PLUS - SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant

503,11 kr

Få prismatch på Savöx SV-0236MG PLUS - SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil nu, leveret om 5-7 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo

The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Extremely high torque output
  • Capable of operating on high voltage

Specifications:
  • Torque @6v: 30kg
  • Torque @7.4v: 40kg
  • Speed @6v: 0.21sec/60deg
  • Speed @7.4v: 0.17sec/60deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Tech Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
