Savöx  |  Varenummer: SAV-SV1250MGPLUS

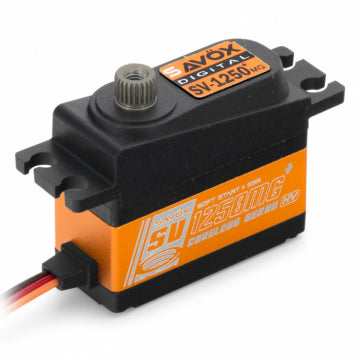

Savöx SV-1250MG PLUS - SV-1250MG Plus Servo 8,0Kg 0,095s HV Alu Coreless Metal Gear Mini

486,46 kr

Lagerstatus:

På lager hos leverandør - bestil før 11:00, leveret d. 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SV-1250MG PLUS - SV-1250MG Plus Servo 8,0Kg 0,095s HV Alu Coreless Metal Gear Mini er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

SAVÖX SV-1250MGPLUS - Metal-Geared High Voltage Mini Servo

The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

Features:
  • New: Soft Start
  • High Voltage
  • Metal gear train provide durability against heavy use
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal where torque is needed in a small mounting space

Specifications:
  • Torque @6V: 4.6kg/cm
  • Torque @7.4V: 8kg/cm
  • Torque @8.4V: 10kg/cm
  • Speed @6V: 0.11 sec/60 deg
  • Speed @7.4V: 0.095 sec/60 deg
  • Speed @8.4V: 0.085 sec/60 deg
  • Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
  • Weight: 29.6g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 154° (800 ? 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.

Nem og sikker betaling

Betalingsmetoder

  • Visa
  • Mastercard
  • MobilePay

Dine betalingsoplysninger behandles sikkert. Vi opbevarer ikke kreditkortoplysninger og har ingen adgang til dine kreditkortinformationer.

Savöx

Savöx SV-1250MG PLUS - SV-1250MG Plus Servo 8,0Kg 0,095s HV Alu Coreless Metal Gear Mini

486,46 kr

SAVÖX SV-1250MGPLUS - Metal-Geared High Voltage Mini Servo

The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

Features:
  • New: Soft Start
  • High Voltage
  • Metal gear train provide durability against heavy use
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal where torque is needed in a small mounting space

Specifications:
  • Torque @6V: 4.6kg/cm
  • Torque @7.4V: 8kg/cm
  • Torque @8.4V: 10kg/cm
  • Speed @6V: 0.11 sec/60 deg
  • Speed @7.4V: 0.095 sec/60 deg
  • Speed @8.4V: 0.085 sec/60 deg
  • Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
  • Weight: 29.6g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 154° (800 ? 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
