Savöx  |  Varenummer: SAV-SV1272SGPLUS Producent varenr.: SV-1272SG PLUS  |  EAN: 4710006994222

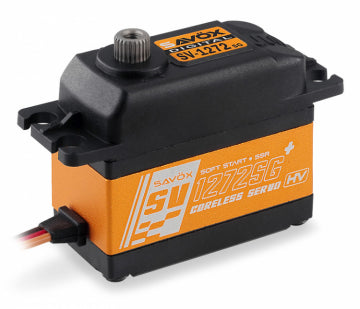

Savöx SV-1272SG PLUS - SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear

609,09 kr

Få prismatch på Savöx SV-1272SG PLUS - SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil nu, leveret om 5-7 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo - PLUS/V2

This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • High Voltage
  • Super strong and precision made unique steel gears provide durability and survive heavy use
  • Extreme amount of torque in a standard case
  • Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks

Specifications:
  • Torque @6V: 23kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.13 sec/60 deg
  • Speed @7.4V: 0.10 sec/60 deg
  • Torque @8.4V: 40kg/cm
  • Speed @8.4V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 63g

Technical Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Forsendelse

Vi benytter GLS:

Pakkeshop: fra 35 kr.
Direkte til adresse: fra 59 kr.
Erhverv: fra 49 kr.

Savöx

Savöx SV-1272SG PLUS - SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear

609,09 kr

SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo - PLUS/V2

This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • High Voltage
  • Super strong and precision made unique steel gears provide durability and survive heavy use
  • Extreme amount of torque in a standard case
  • Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks

Specifications:
  • Torque @6V: 23kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.13 sec/60 deg
  • Speed @7.4V: 0.10 sec/60 deg
  • Torque @8.4V: 40kg/cm
  • Speed @8.4V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 63g

Technical Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
