Savöx  |  Varenummer: SAV-SW0230MGPLUS Producent varenr.: SW-0230MG PLUS

Savöx SW-0230MG PLUS - SW-0230MG Plus Servo 8Kg 0,13s HV Metal Gear WP

293,93 kr

Få prismatch på Savöx SW-0230MG PLUS - SW-0230MG Plus Servo 8Kg 0,13s HV Metal Gear WP

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så vender vi hurtigst muligt tilbage. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:00, leveret om 3-4 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fri fragt ved 600 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

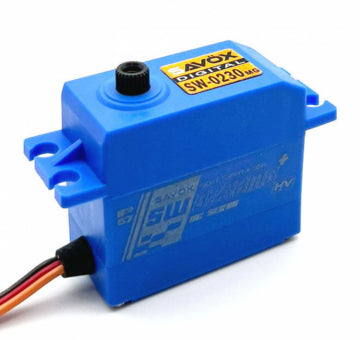

SAVÖX SW-0230MGPLUS - Water Proof High Voltage Metal-Geared Standard-Sized Servo

The SW-0230MG-PLUS is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition - rain or snow.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Strong metal gear train for added durability
  • Waterproof case design
  • Capable of HV operation
  • Ideal for cars, truck, and boats subject to water or snow

Specifications:
  • Torque @ 6V: 6.5kg/cm
  • Torque @ 7.4V: 8kg/cm
  • Speed @ 6V: 0.16 sec/60 deg
  • Speed @ 7.4V: 0.13 sec/60 deg
  • Dimensions L x W x H: 41.8 x 20.2 x 38mm
  • Weight: 60g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Forsendelse

Vi benytter GLS:

Pakkeshop: 39 kr.
Direkte til adresse: 59 kr.
Erhverv: 59 kr.

Savöx

Savöx SW-0230MG PLUS - SW-0230MG Plus Servo 8Kg 0,13s HV Metal Gear WP

293,93 kr

SAVÖX SW-0230MGPLUS - Water Proof High Voltage Metal-Geared Standard-Sized Servo

The SW-0230MG-PLUS is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition - rain or snow.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Strong metal gear train for added durability
  • Waterproof case design
  • Capable of HV operation
  • Ideal for cars, truck, and boats subject to water or snow

Specifications:
  • Torque @ 6V: 6.5kg/cm
  • Torque @ 7.4V: 8kg/cm
  • Speed @ 6V: 0.16 sec/60 deg
  • Speed @ 7.4V: 0.13 sec/60 deg
  • Dimensions L x W x H: 41.8 x 20.2 x 38mm
  • Weight: 60g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
