Savöx  |  Varenummer: SAV-SW1210SGPLUS

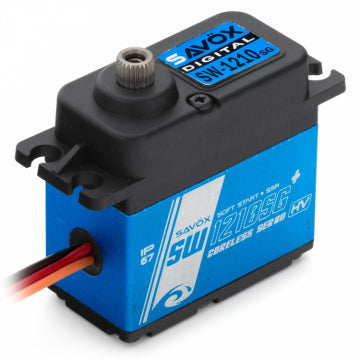

Savöx SW-1210SG PLUS - SW-1210SG Plus Servo 32Kg 0,13s HV Alu Coreless Steel Gear WP

642,56 kr

Lagerstatus:

Der er 1 styk på lager hos leverandør - order before 11:00, leveres den 16 maj (8 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SW-1210SG PLUS - SW-1210SG Plus Servo 32Kg 0,13s HV Alu Coreless Steel Gear WP er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

SAVÖX SW-1210SGPLUS - Monster Torque High Voltage Water Proof Servo

The SW-1210SG Plus is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:
  • New: Soft Start
  • High Voltage (Now 8.4V!)
  • Strong unique steel gears provide durability and assurance
  • Waterproof IP67 construction for harsh elements
  • Ideal for cars, trucks and boats subject to water or snow

Specifications:
  • Torque @6V: 20kg/cm
  • Torque @7.4V: 32kg/cm
  • Torque @8.4V: 37kg/cm
  • Speed @6V: 0.15 sec/60 deg
  • Speed @7.4V: 0.13 sec/60 deg
  • Speed @8.4V: 0.12 sec/60 deg
  • Dimensions L x W x H: 40.6 x 20.7 x 42mm
  • Weight: 71g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 150 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
