Savöx  |  Varenummer: SAV-SW2290SG

Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

994,03 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

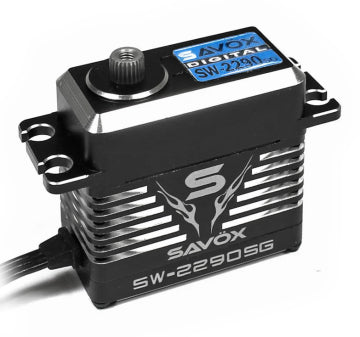

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6v: 45kg
  • Torque @ 7.4v: 55kg
  • Torque @ 8.4v: 70kg
  • Speed @ 6v: 0.16s/60°
  • Speed @ 7.4v - 0.13s/60°
  • Speed @ 8.4v - 0.11s/60°
  • Dimensions L x W x H: 41 x 21 x 39.9mm
  • Weight: 81g

Technical:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
