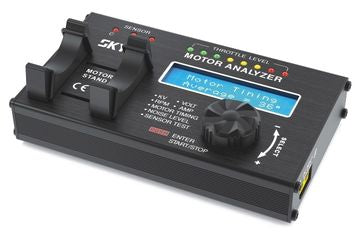

SkyRC SK-500020-1 - Brushless Motor Analyzer

SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.

Specs:

• Net Weight: 282 gr (Without Cabel)
• Input Voltage: 7.4-8.4V (Suggested 7.4V 2S 1P LiPo)
• LCD: Blue Backlight Background, White Text, 16 Characters X 2 Lines
• KV Value Accuracy: +/- 3%
• Motor Timing Accuracy: +/- 4%
• Motor Timing Range: 0-70°
• Noise Level Measurement Range: 60dB - 120dB
• Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)

Includes:

• SkyRC Blushless Motor Analyzer
• Motor Sensor Cable
• Motors cables with 3.5mm banana connector and Crocodile Clip
• DC Input Power Cable with XT60 connector and 4.0mm banana connectors
• DC Input Power Cable with XT60 connector and Tamiya connector
