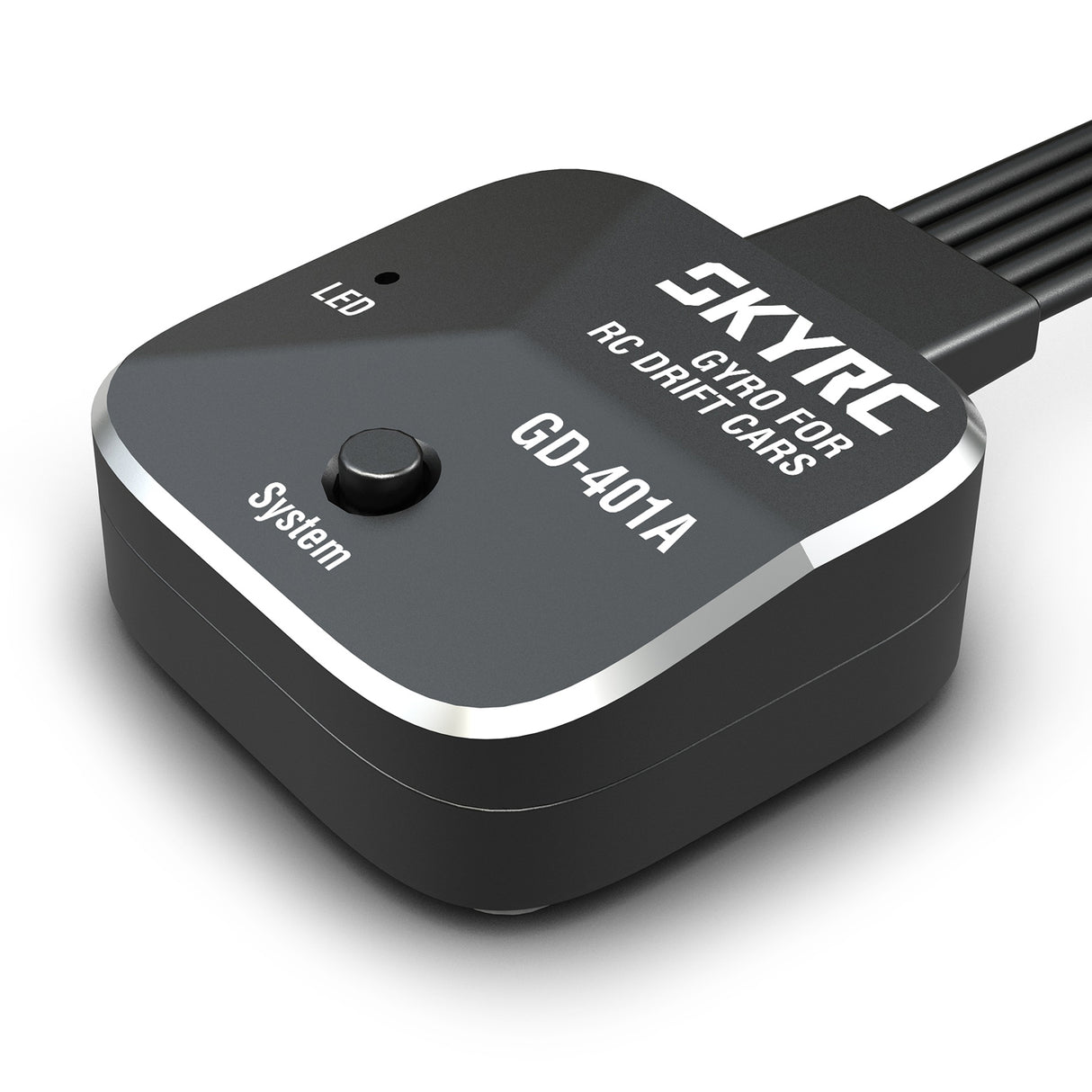

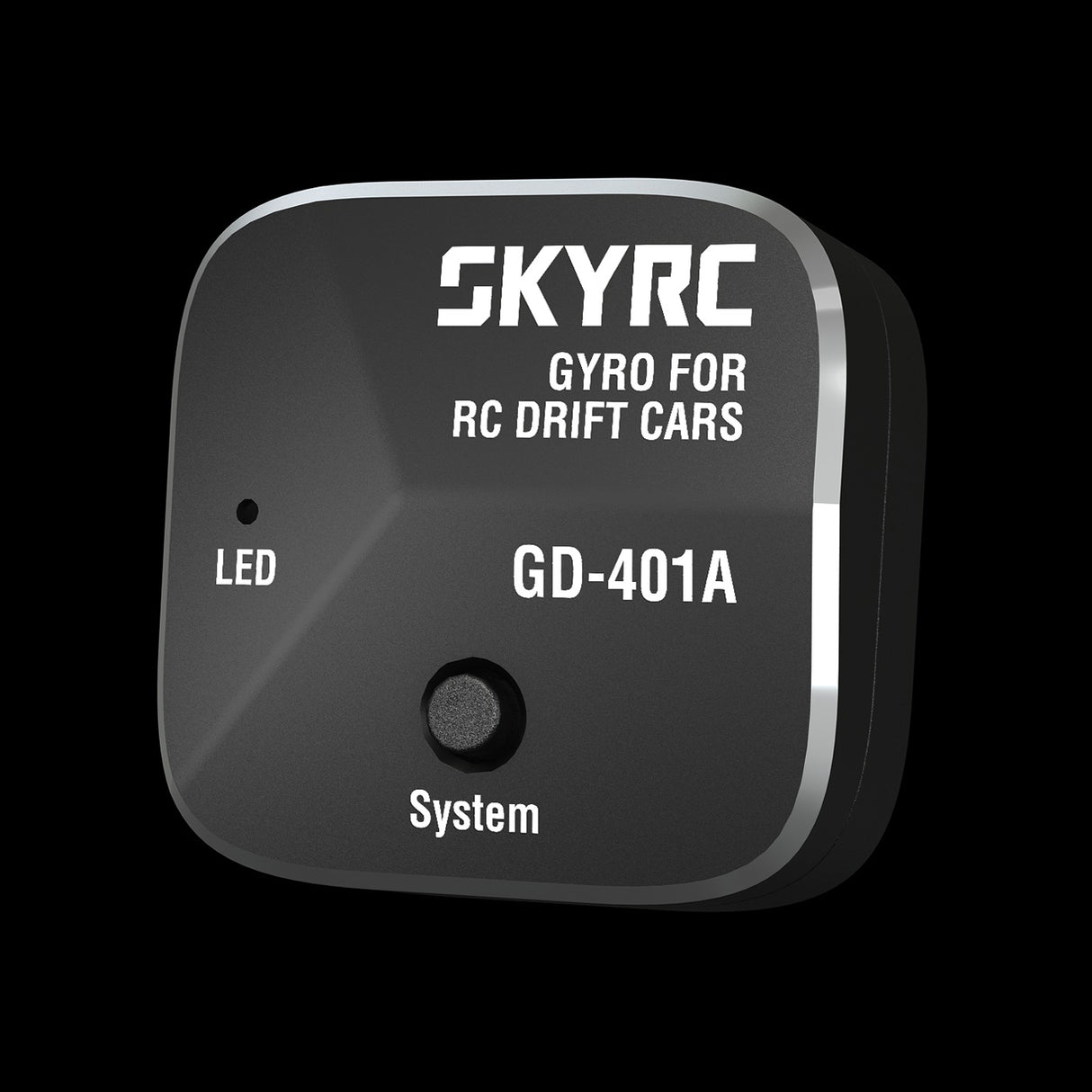

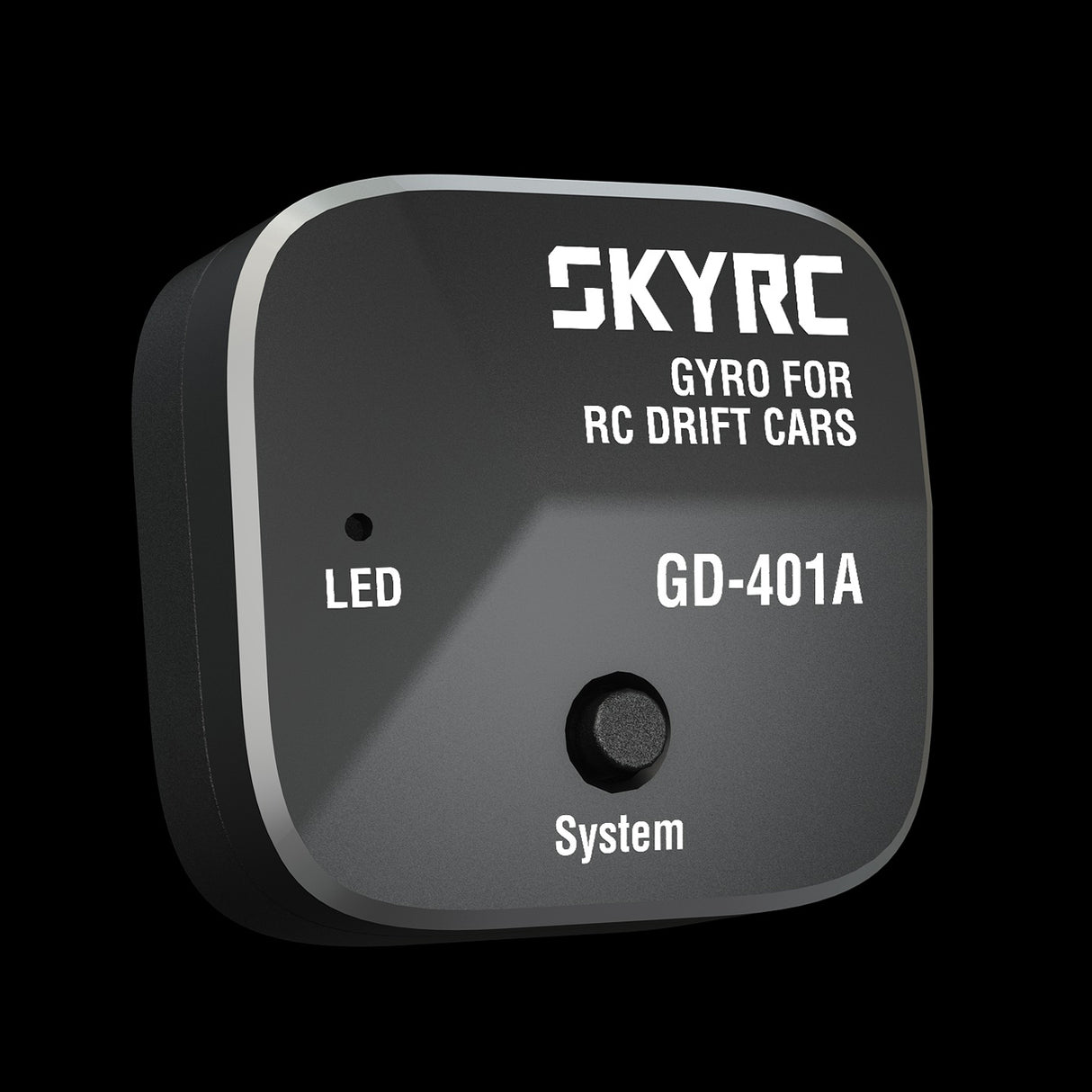

GD-401A Drift Car Gyro

Product Info:

SkyRC SK600154-01 - GD-401A Drift Car Gyro

Features:

• CNC aluminum. Tough, elegant, heat-efficient.
• Optimized sensitivity and gain algorithms ensure accurate, responsive control.
• Adjustable servo travel with 180° endpoint setting.
• Integrated cable. One-button setup. Easy install.
• 9 curves for various drift scenarios.
• One-touch reverse setup with 5-second steering direction correction.

From Core to Curve
A 32-bit processor works seamlessly with the high-precision MEMS gyro to calculate and correct every deviation—delivering control that feels natural and fluid.
Tuned for RWD drift cars with 9 preset curves, and compatible with touring, rally, and short course models.

9 Preset Curves. For Every Drift.
From smooth to sharp, GD-401A’s 9 preset curves adapt to your driving style—beginner or pro.

• A single button cycles through modes (1–9).
• At startup, green LED flashes display the selected curve.
• Adapt to every track. Match every drift.

Sense and Stability
This gyro continuously detects and corrects steering deviations, delivering smoother handling and a more focused driving experience.

Dial-In Your Endpoints
Take full control with EPA (End Point Adjustment), fine-tuning servo travel within its 180° range to avoid interference and oversteer.
Precision, simplified. Every turn, just right!

Different Mount, Same Control
Different chassis, different layouts—sometimes your control logic ends up reversed. With one-touch reverse setup, the gyro adapts automatically to your installation. No second-guessing directions—just focus on nailing every corner with precision.

LED Status at a Glance.

• Red LED Flashing: No signal received; transmitter may not be powered on.
• Solid Green LED: Transmitter disconnected.
• Flashing Green LED: Indicates the current curve level. The LED flashes in a loop from 1 to 9 times to show the active curve.

Discreet. Durable. Designed to Fit.
So compact, it virtually disappears into your chassis—lightweight, seamless, and never in the way during assembly or wiring. CNC-machined aluminum provides rigidity and efficient cooling, all wrapped in a premium finish that feels as refined as it looks.

Specifications:

• Size: 22x21x9mm
• Weight: Approx. 12g
• Case Material: 6063 Aluminum
• Input Signal: PWM (50–333Hz)
• Operating Voltage: 4.8V–7.4V
• Output Signal to Servo: 1520μs (50–333Hz)
• Operating Current: 20mA @ 6V
• Operating temperature: -10°C-40°C
• Working humidity: 10%–90% RH, non-condensing
• Storage temperature: -10°C–45°C
• Storage humidity: 20%–65% RH, non-condensing
