Xrotor Micro F4 G3 Flight Controller w OSD

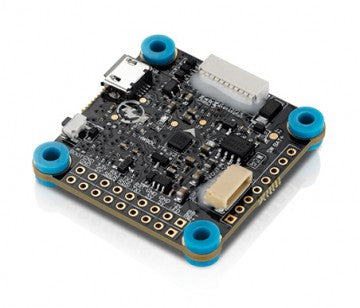

Hobbywing XRotor Flight Controller F4 G3 with OSD

Super hardware and running speed
Super hardware, fast running speed integrates with STM32F405 MCU which features powerful computing capacity & super operating speed and high sensitivity ICM20602 6-axis motion sensor. It can run PID cyclic frequency and gyro refresh frequency at 32KHz. Integrated OSD chip can set OSD parameters on FMU parameter software and remote controller. Convenient and simple. Integrated OSD extended slot can record and save more flight log which is convenient for user to adjust aircraft based on flight data.

Features:

• Onboard 12V BEC
• Onboard Pit Switch Module
• Perfectly Supports Various Machine Firmware
• Unique Shock Absorbing Structure
• Perfectly Integrates with Hobbywing ESC?s
• Perfectly support various mainstream throttle signal modes

Specs:

• Compatible with (Multirotors): Quadcopter
• Firmware: OMNIBUSF4SD
• FC Programming: Supported
• Programming via: Betaflight/Cleanflight-configurator or Others
• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc.
• Compatible with (Transmitters): PPM, Spektrum, S.BUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
• OSD: Built-in
• Voltage Monitoring: Supported
• Current Monitoring: Supported
• External Buzzer: Supported
• LED Control: Supported
• BEC: 12V @ 2A
• USB Port: MicroUSB
• Applications: 130-300mm FPV?s

Size & Weight:

• Size: 36 x 36mm
• Weight: 6g
