SA-1230SG Servo 36Kg 0,16s Alu Coreless Steel Gear

SAVÖX SA-1230SG - Coreless Steel-Geared High Torque Servo

The Savox SA-1230SG Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:

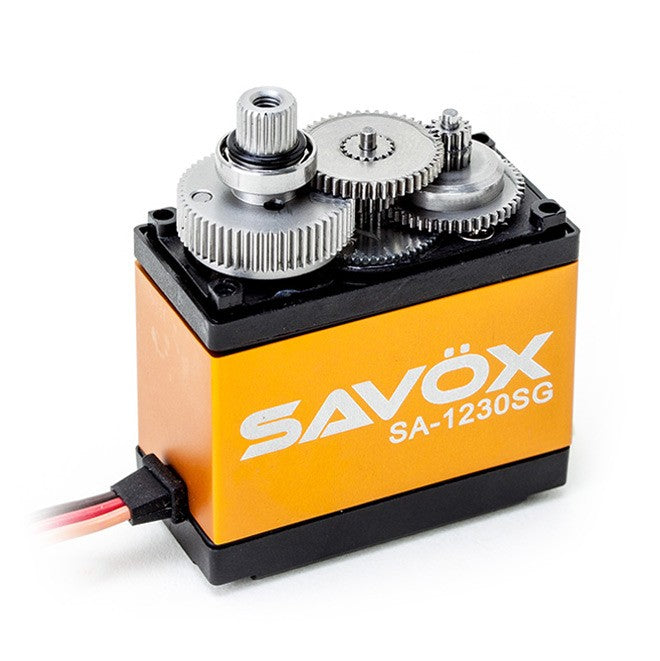

• Extremely strong unique steel gears ensure long-life and durability
• Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
• Slightly taller case design

Specifications:

• Torque @ 4.8V: 30.0kg
• Torque @ 6V: 36.0kg
• Speed @ 4.8V: 0.20 sec/60 deg
• Speed @ 6V: 0.16 sec/60 deg
• Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
• Weight: 79g

Technical Details:

• Operating Temperature: -10° - 50°C
• Running Current (no load): 180mA @4.8V, 250mA @6.0V
• Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
